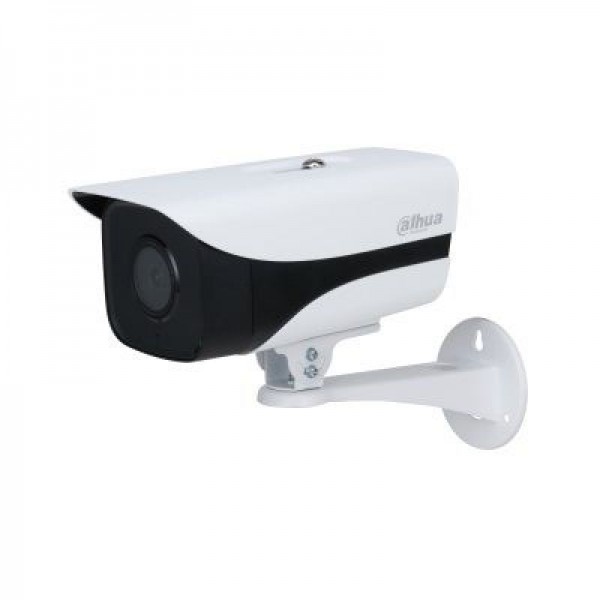

Dahua IPC-HFW2439MP-AS-LED-B-S2 4MP 40Meter IR Full Time Color Camera Price in Bangladesh
Dahua IPC-HFW2439MP-AS-LED-B-S2 4MP 40Meter IR Full Time Color Camera Price in Bangladesh4MP, 1/3″ CMOS image sensor, low illuminance, high image definitionOutputs 4MP (2560 × 1440) @ 25/30 fps, Max. ..
- Brand: Dahua
- Product Code: Dahua IPC-HFW2439MP-AS-LED-B-S2
- Availability: In Stock
Dahua IPC-HFW2439MP-AS-LED-B-S2 4MP 40Meter IR Full Time Color Camera Price in Bangladesh
- 4MP, 1/3″ CMOS image sensor, low illuminance, high image definition
- Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm lights, max. illumination distance: 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, scene changing, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
- Alarm: 2 in, 2 out; audio: 1 in, 1 out(optional); supports max. 256 GB Micro SD card
- 12V DC/PoE power supply; 12V DC power output, max. current 165mA
- IP67 protection
Specification:
Image Sensor 1/3”4Megapixel progressive CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination 0.004 Lux@F1.0
S/N Ratio > 56 dB
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Warm light)
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 3.6 mm6 mm
Max. Aperture 3.6 mm: F1.06 mm: F1.0
Field of view 3.6 mm: Horizontal 91° × Vertical 47° × Diagonal 109°6 mm: Horizontal 55° × Vertical 30° × Horizontal 64°
Iris Type Fixed
Close Focus Distance 3.6 mm: 1.8 m (5.9 ft)6 mm: 4.5 m (14.8 ft)
DORI Distance Lens:
3.6 mm
6 mm
Detect:
72.0 m (236.2 ft)
120.0m (393.7 ft)
Observe:
28.8 m (94.5 ft)
48.0m (157.5 ft)
Recognize:
14.4 m (47.2 ft)
24.0 m (78.7 ft)
Identify:
7.2 m (23.6 ft)
12.0 m (39.4 ft)
Video
Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/Smart H.264+
Video Frame Rate Main stream:2688 × 1520 (1 fps–20 fps)2560 × 1440 (1 fps–25/30 fps)Sub stream:704 × 576 (1 fps–20/25 fps)704 × 480 (1 fps–20/30 fps)
Bit Rate Control CBR/VBR
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Stream Capability 2 Streams
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
Audio
Audio Compression N/A
Smart Event
General IVS Analytics Tripwire; intrusion
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection Grade IP67
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption <10.2W
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
