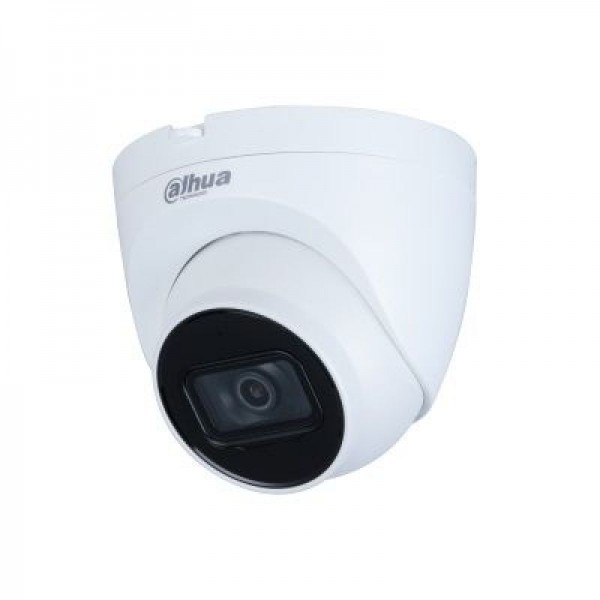

Dahua DH-IPC-HDW2431TP-AS-S2 4MP WDR IR Eyeball Audio Camera Price in Bangladesh
Dahua DH-IPC-HDW2431TP-AS-S2 4MP WDR IR Eyeball Audio Camera Price in Bangladesh4MP, 1/3” CMOS image sensor, low illuminance, high image definitionOutputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4M..
- Brand: Dahua
- Product Code: Dahua DH-IPC-HDW2431TP-AS-S2
- Availability: In Stock
Dahua DH-IPC-HDW2431TP-AS-S2 4MP WDR IR Eyeball Audio Camera Price in Bangladesh
- 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
- Outputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
- Built-in IR LED, max IR distance: 30 m
- Supports max. 256 GB Micro SD card, built-in Mic
- IP67 protection
Specifications
Image Sensor 1/3” 4Megapixel progressive CMOS
Effective Pixels 2688 (H) × 1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.008 Lux @ F1.6
IR Distance 30 m (98.43 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 2
Pan/Tilt/Rotation Range Horizonal: 0°–360°
Vertical: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed
Mount Type M12
Focal Length 2.8 mm
3.6 mm
Max. Aperture F1.6
F1.6
Field of View 2.8 mm:
Horizonal: 102.0°
Vertical: 55.0°
Diagonal: 121.0°
3.6 mm:
Horizonal: 84.0°
Vertical: 45.0°
Diagonal: 100.0°
Iris Type Fixed aperture
Close Focus Distance 2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (3.61 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 56 m (183.73 ft) 22.4 m(73.49 ft) 11.2 m(36.75 ft) 5.6 m(18.37 ft)
3.6 mm 80 m (262.47 ft) 32.0 m (104.99 ft) 16.0 m(52.49 ft) 8.0 m(26.25 ft)
Smart event
General IVS Analytics Intrusion; tripwire
DH-IPC-HDW2431TP-AS-S2 4MP WDR IR Eyeball Audio Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream:2688 × 1520 (1 fps-20 fps)2560 × 1440 (1 fps-25/30 fps)Sub stream:704 × 576 (1 fps-25 fps)704 × 480 (1 fps-30 fps)
Stream Capability 2 streams
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711A; G.711Mu; G.726; AAC
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
User/Host 20
Edge Storage Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption < 6.6W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection IP67
Structure
Casing Metal + Plastic
Dimensions 100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″)
Net Weight 0.39 kg (0.9 lb)
Gross Weight 0.56 kg (1.2 lb)
Dahua DH-IPC-HDW2431TP-AS-S2 Price in Bangladesh
Dahua DH-IPC-HDW2431TP-AS-S2 Price in Bangladesh is 6,000 taka. Contact TRIMATRIK INFOTECH for Buy Dahua DH-IPC-HDW2431TP-AS-S2 IP Camera in Bangladesh
